Jaguar XE Ingenium 2.0 Timing Chain Replacement: Real Case Study
This week, we completed a timing chain replacement on a 2016 Jaguar XE with the Ingenium 2.0 diesel engine and a rare manual gearbox. The customer came to us after hearing a metallic rattle on cold starts—a telltale sign of timing chain stretch on these engines.
The Jaguar Land Rover Ingenium 2.0 diesel engine (used in XE, XF, F-Pace, E-Pace, Discovery Sport, Evoque, and Velar) is known for premature timing chain problems. Weak materials, oil dilution, and design issues can cause the chain to stretch, leading to rattling noises, check engine lights, and—if left unchecked—catastrophic engine failure.
Below is the complete repair process, exact costs, timeline, and what we found when we opened up the engine.
For general information about Ingenium timing chain problems, symptoms, and affected models, see our complete Jaguar Ingenium timing chain guide.
The Problem: Jaguar XE Ingenium 2.0 Timing Chain Stretch
The customer first noticed a metallic rattle on cold starts that lasted 2-3 seconds. Over a few weeks, the rattle became more frequent and lasted longer. Eventually, the check engine light came on, and the car started losing power.
Diagnostic scan revealed:
- Fault code: P0016 (Crankshaft/Camshaft Position Correlation)
- Fault code: P0011 (Camshaft Position Timing Over-Advanced)
- Timing chain stretch detected (chain had elongated approximately 6mm)
These fault codes are classic signs of timing chain failure on Ingenium engines. The chain had stretched enough to throw the camshaft timing out of sync with the crankshaft, causing the engine management system to flag errors.
Customer’s symptoms:
- Cold start rattle (metallic ticking for 2-3 seconds)
- Check engine light (P0016, P0011)
- Loss of power (reduced acceleration)
- Rough idle (engine vibration)
- Increased fuel consumption
The customer did the right thing by bringing the car in as soon as the rattle started. Waiting any longer could have resulted in the chain jumping timing or snapping completely—potentially writing off the engine.
Which Jaguar & Land Rover Models Are Affected?
The Ingenium 2.0 diesel engine (engine code: 204DTD, AJ200D) was used across multiple Jaguar and Land Rover models from 2015 onwards. If you own any of the vehicles listed below, your car is at risk of timing chain failure:
| Make & Model | Years Affected | Engine Code | Risk Level |
|---|---|---|---|
| Jaguar XE | 2015-2020 | 204DTD | HIGH |
| Jaguar XF | 2015-2020 | 204DTD | HIGH |
| Jaguar F-Pace | 2016-2020 | 204DTD | HIGH |
| Jaguar E-Pace | 2017-2020 | 204DTD | HIGH |
| Land Rover Discovery Sport | 2015-2020 | 204DTD | HIGH |
| Land Rover Range Rover Evoque | 2015-2020 | 204DTD | HIGH |
| Land Rover Range Rover Velar | 2017-2020 | 204DTD | HIGH |
If your Jaguar or Land Rover was manufactured between 2015 and 2020 with the 2.0 diesel engine, it’s worth having the timing chain inspected—especially if you’re hearing any unusual noises on cold starts.
Jaguar XE Timing Chain Replacement Cost
The Ingenium timing chain replacement is a fixed £2,500 + VAT. It is a fixed price, so you know what you are ringing about before the car comes in. It covers the chain kit, guides, tensioner, gaskets and seals, the engine access and strip, and timing verification on reassembly.
Anything beyond the chain job itself — valve or cylinder head damage where the chain has already jumped, or a replacement engine — we price on the day. Parts prices and availability move constantly on these engines, so a published figure would be out of date before you read it.
Why This Cost?
- Labour-intensive: 20 hours of skilled work (engine access, inspection, replacement, reassembly)
- Parts quality: OEM-spec components ensure reliability and longevity
- Manual gearbox: Rare manual transmission required extra care during removal/installation
- Professional standards: Proper timing verification, testing, and 12-month warranty
Cost Comparison: For a full breakdown of Ingenium timing chain repair costs and options, see our Ingenium timing chain cost guide.
What We Found: Timing Chain Damage & Wear
Once we had the engine opened up and the timing chain cover removed, the extent of the damage became clear:
- Timing chain had stretched approximately 6mm (normal wear is 2-3mm)
- Upper guide rail showed scoring marks from chain contact
- Tensioner spring had weakened, causing slack in the chain
- Oil pickup screen had accumulated chain debris (metal particles from wear)
- Crankshaft and camshaft gears showed minor scoring but were still serviceable
The customer was lucky—the chain hadn’t jumped timing or snapped. If they’d waited another few weeks, the damage could have been catastrophic (bent valves, piston damage, engine write-off).
All worn components were replaced with OEM-spec parts to Jaguar standards.
The Repair Process: Step-by-Step
Here’s how we tackled this Jaguar XE timing chain replacement:
Step 1: Diagnostic Inspection (2 hours)
- Full diagnostic scan (fault codes P0016, P0011)
- Visual and audible inspection (cold start rattle confirmed)
- Check service history and mileage (78,000 miles)
- Customer consultation and quote approval

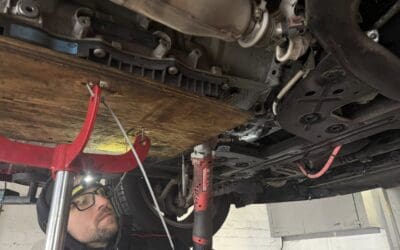

Step 2: Engine Access (4 hours)
- Remove engine covers and ancillaries
- Drain coolant and oil
- Disconnect wiring harnesses and sensors
- Remove engine mounts
- Carefully lift engine for access to timing chain cover
Step 3: Timing Chain Replacement (8 hours)
- Remove timing chain cover
- Remove old timing chain, guides, and tensioner
- Inspect crankshaft and camshaft gears for damage
- Clean oil pickup and sump (remove chain debris)
- Install new timing chain kit (OEM-spec components)
- Install new guides and tensioner
- Verify timing with locking tools (critical step)
- Replace all gaskets and seals
- Refill with fresh Jaguar-spec oil (5W-30 diesel)
Step 4: Engine Reassembly & Testing (6 hours)
- Reassemble engine and refit into bay
- Reconnect all wiring harnesses and sensors
- Reconnect coolant hoses and oil lines
- Engine start-up (cold and warm)
- Listen for any unusual noises
- Diagnostic scan to verify fault codes cleared
- Oil pressure check
- Road test for performance and drivability
- Final inspection and customer handover
Total labour time: 20 hours
Timeline: How Long Did This Repair Take?
| Stage | Time | Details |
|---|---|---|
| Diagnostics & Inspection | 2 hours | Initial scan, visual inspection, quote preparation |
| Engine Access | 4 hours | Drain fluids, disconnect wiring, remove mounts, lift engine |
| Timing Chain Replacement | 8 hours | Remove cover, replace chain/guides/tensioner, verify timing |
| Engine Reassembly | 4 hours | Reassemble, refit into bay, reconnect all systems |
| Testing & Sign-Off | 2 hours | Start-up, diagnostics, road test, final inspection |
| TOTAL | 20 hours | Completed in 3 days |
Why 3 Days?
Although the repair took 20 hours of labour, it was spread over 3 days because:
- Day 1: Diagnostics (2 hours) + Engine access & removal (4 hours) = 6 hours
- Day 2: Timing chain replacement (8 hours) = 8 hours
- Day 3: Engine reassembly (4 hours) + Testing & sign-off (2 hours) = 6 hours
We could have completed it faster, but we prioritize quality over speed. Proper timing verification and thorough testing are essential to prevent future problems.
Why Ingenium Timing Chains Fail
The Jaguar Land Rover Ingenium 2.0 diesel engine has a well-documented timing chain problem. Here’s why:
1. Premature Chain Stretching
The timing chains on Ingenium engines stretch prematurely—sometimes within 60,000-80,000 miles. This is caused by a combination of weak materials and design issues.
2. Weak Chain Materials
Some reports suggest the chain materials themselves are not as durable as they should be. Unlike some competitors’ engines, Ingenium chains don’t hold their tension as well over time.
3. Oil Dilution Issues
Diesel engines with DPF regeneration systems can suffer from oil dilution (fuel contamination in the oil). This reduces oil quality and accelerates timing chain wear.
4. Tensioner & Guide Wear
The tensioner and guide components wear faster than expected, leading to chain slack and rattling.
5. Design Flaws
Unlike some engines where the timing chain is at the front and easily accessible, the Ingenium chain is front-mounted but the design doesn’t allow for easy inspection or maintenance.
The result? Premature stretching, rattling, check engine lights, and—if left unchecked—catastrophic engine failure.
Jaguar XE Ingenium 2.0 Timing Chain FAQs
How much does Jaguar XE timing chain replacement cost?
The Ingenium timing chain replacement is a fixed £2,500 + VAT, covering parts, labour and testing. Damage beyond the chain itself is priced on inspection. For a full breakdown of repair costs and options, see our Ingenium timing chain cost guide.
How long does Jaguar XE timing chain replacement take?
Jaguar XE timing chain replacement takes 18–24 hours of labour, typically 2–4 days in the workshop including diagnostics, removal, replacement, reassembly, and road testing. This case study took 20 hours over 3 days.
Which Jaguar models have Ingenium engines?
The Ingenium 2.0 diesel engine was fitted to:
- Jaguar XE (2015-2020)
- Jaguar XF (2015-2020)
- Jaguar F-Pace (2016-2020)
- Jaguar E-Pace (2017-2020)
- Land Rover Discovery Sport (2015-2020)
- Land Rover Range Rover Evoque (2015-2020)
- Land Rover Range Rover Velar (2017-2020)
If your Jaguar or Land Rover was built between 2015 and 2020 with a 2.0 diesel engine, it likely has the Ingenium.
Can I drive with a rattling Jaguar XE timing chain?
Not for long.
Driving with a rattling timing chain is risky. The rattle means the chain is already losing tension and wearing prematurely. Continuing to drive can result in:
- Chain jumping timing (engine won’t start or runs rough)
- Chain snapping completely (engine stops, potential damage)
- Valve damage (catastrophic engine failure)
- Engine write-off
We recommend booking a diagnostic inspection immediately. If the chain is confirmed as faulty, plan the repair within 1–2 weeks. Driving more than a few hundred miles risks serious engine damage.
Is the Jaguar XE reliable after timing chain replacement?
Yes, absolutely.
Once the timing chain, guides, and tensioner are replaced with OEM-spec parts, the Jaguar XE Ingenium is reliable and will perform well for many more years.
What matters is:
- Quality parts: Always use OEM-spec components
- Proper installation: Timing must be set precisely with locking tools
- Regular maintenance: Oil changes every 10,000 miles with quality Jaguar-spec oil
- Warranty: We provide 12 months parts & labour warranty
Many Jaguar XE and other Ingenium engines we’ve repaired have gone on to 150,000+ miles without further issues.
What fault codes indicate Ingenium timing chain problems?
Common fault codes related to Ingenium timing chain failure include:
- P0016: Crankshaft/Camshaft Position Correlation Error
- P0011: Camshaft Position Timing Over-Advanced
- P0014: Camshaft Position Timing Over-Retarded
- P0017: Crankshaft/Camshaft Position Correlation (Bank B)
If you see any of these codes, especially combined with a cold start rattle, have the timing chain inspected immediately.
How do I prevent Jaguar XE timing chain problems?
While you can’t prevent the design flaw, you can reduce the risk:
- Regular oil changes: Every 10,000 miles with high-quality Jaguar-spec 5W-30 diesel oil
- Use quality oil: Cheap oil accelerates wear. Use manufacturer-recommended spec
- Listen for warning signs: Cold start rattle = immediate inspection needed
- Don’t ignore fault codes: Check engine lights related to timing should be investigated straight away
- Avoid short journeys: Short trips don’t allow oil to warm up properly, increasing wear
- Consider preventative replacement: If your car has 80,000+ miles and original chain, consider replacing before it fails
Why does this customer’s Jaguar XE have a manual gearbox?
The 2016 Jaguar XE with a manual gearbox is quite rare. Most XE models came with automatic transmissions (8-speed ZF automatic). Manual transmissions were available but in limited numbers, making this a special car.
The manual gearbox didn’t affect the timing chain repair itself, but it required extra care during engine removal and installation to ensure the clutch and flywheel weren’t damaged.
Related Timing Chain Repairs
If you’re dealing with Ingenium timing chain problems, you might also find these guides helpful:
- Jaguar Land Rover Ingenium 2.0 Timing Chain Problems: Complete Guide
- BMW N47 Timing Chain Rattle: Why Early Intervention Saves Engines
- What’s Causing That Cold Start Rattle? It Might Be Your Timing Chain
- 1.6 CDTi Timing Chain Problems: Vauxhall, Opel & Chevrolet Guide
Need Help with Your Jaguar or Land Rover?
If your Jaguar XE, XF, F-Pace, E-Pace or Land Rover Discovery Sport, Evoque, or Velar is hearing unusual noises from the engine—especially on cold starts—don’t wait. Timing chain failure can lead to catastrophic damage if it goes unchecked.
Catching it early keeps you on the fixed-price chain job rather than an open-ended repair bill.
At Star Garage Mansfield, we’ve completed multiple Jaguar and Land Rover Ingenium timing chain replacements and know exactly what’s involved. We use OEM-spec components to ensure reliability and provide a 12-month warranty on all work.
